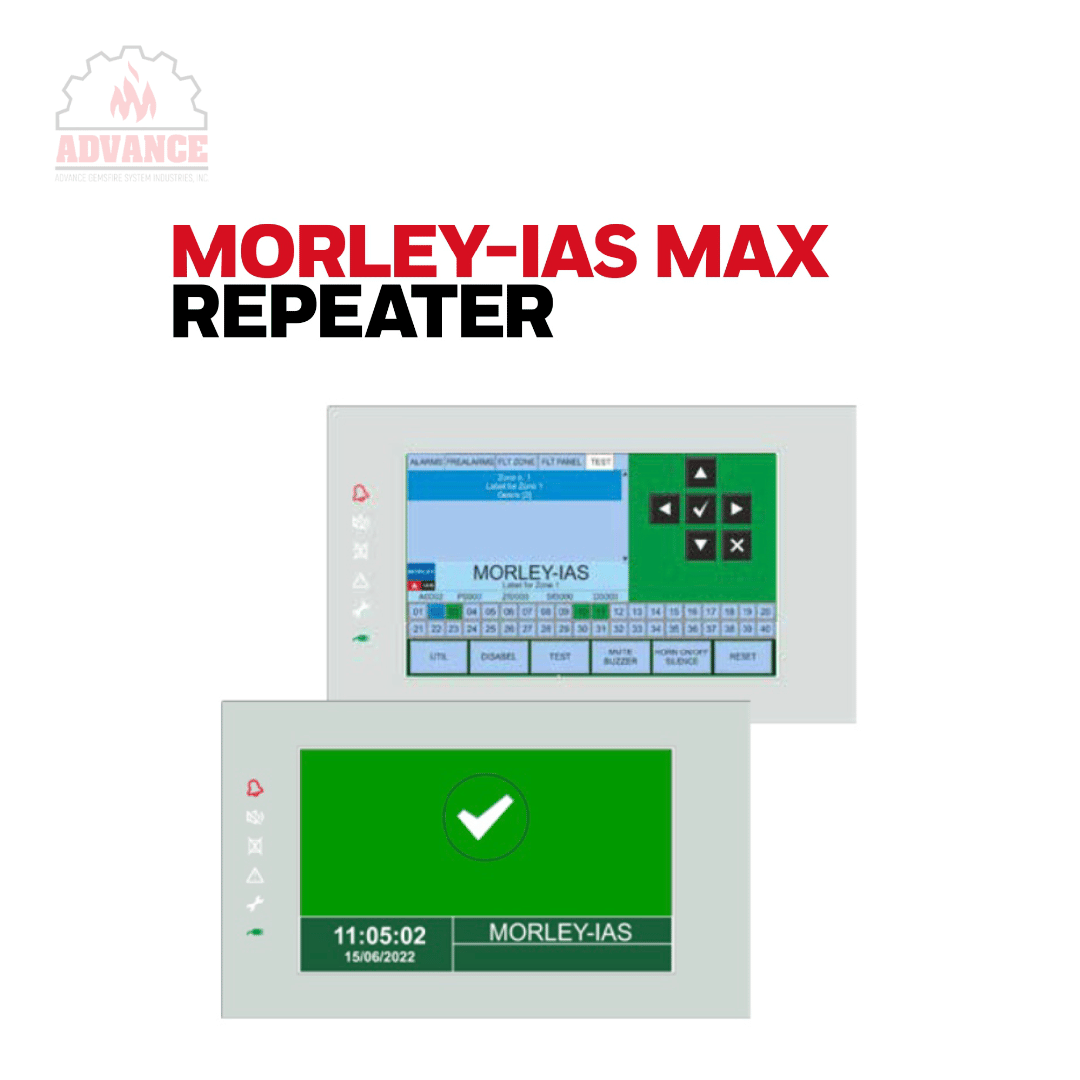

MORLEY-IAS MAX REPEATER
Morley-lAS Max MA-LCD7 is configurable to operate as a Repeater or Zonal Mimic with a sleek and modern design to suit most building aesthetics.
MA-LCD7 is compact, with a sleek, low profile modern design, which incorporates a 7 “TFT 256 colour touchscreen display. Utilising Morley-lAS Max’s intuitive tabs and navigational user interface (UI). MA-LCD7 includes a unique colour coding system to increase users’ situational awareness of events and alarms.
MA-LCD7 is programmable to operate as an active Repeater, or as a Virtual Zonal Mimic – providing 80 Virtual Zones to display a user definable range from 1-1120.
FEATURES AND BENEFITS
MODERN DESIGN WITH EASY INSTALLATION
MA-LCD7 has been designed to suit most modern building
aesthetics. Its sleek and compact design willcomplement modern furnishings. MA-LCD7 is equipped with an Easy Fix wall plate, which allows quick and simple installation with minimum disruption to walls. MA-LCD7’s Easy Fix plate is also suitable for most standard electrical single and double backboxes.
NETWORK VIEW &CONTROL
When programmed as a Repeater, the MA-LCD7 willdisplay all network information regardless of the
panelit is connected to. Control functionality up to Level 2 access, which includes Mute Buzzer, Silence/ Resound and Reset, Network Event History View and Retrieval. When programmed to operate as a Zonal Mimic, global zone reporting from across the network can be displayed.
SINGLE HARDWARE, DUAL FUNCTIONALITY
MA-LCD7 Repeaters can be programmed to work as either an active Repeater or a Zonal Mimic. When programmed as a Repeater, it will display network wide events with control and view functionality.When programmed as a Zonal Mimic, it
will display up to 80 Virtual Zones, which can be user defined. Users can select the zone range from 1-1120.
MECHANICAL SPECIFICATIONS
Length: 220.7mm
Width: 37.7mm*
Height: 132.7mm
Weight: 500g
RAL: Plastic Body (RAL9002), Gloss Frame CRAL7035)
Terminals: Max Wire gauge for terminals: 0.5mm2 to 2.5mm2
Mounting options: Surface (with/without flush or surface standard electrical backbox – not included)
*Dimensions (Including Easy Fix plate)
The Easy Fix plate provides a surface and mounting on most standard double and single electrical backboxes. Cable entry is via the large port at the centre of the plate.
ELECTRICAL SPECIFICATIONS
Operating voltage: ll/30Vdc
Quiescent Current: 73mA at 24Vdc Alarm Current: 130.6mA at 24Vdc Communication Medium:
RS485 2-wire serial link
USB port: Type A
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range:
– s·cto+so·c
Storage temperature range:
– 1o·c to +6o·c
Humidity: 95% (non-condensing) Panel Sealing: IP30
CONNECTIVITY
Up to 16 MA-LCD7 Repeaters/Mimics can be connected to each Morley-lAS Max control panel via the Max panel’s built in RS485 dedicated serial port. Repeaters and Mimics can both be supported simultaneously on a single serial line. Power to each MA-LCD7 can be supplied via the 24-volt auxiliary supply included in the Morley-I AS Max control panel (up to 1 ampere). External Power Supply Units (PSU’s) can be used to support additional Repeaters and Mimics. Recommended: HLSPS50 orHLSPS25.
Each MA-LCD7 is addressed and monitored by the Morley-lAS Max control panel.
